Granular Soil Type (VW) | Model 4815

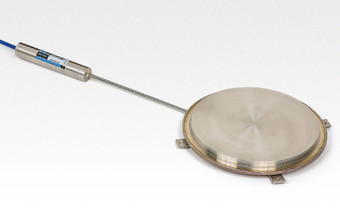

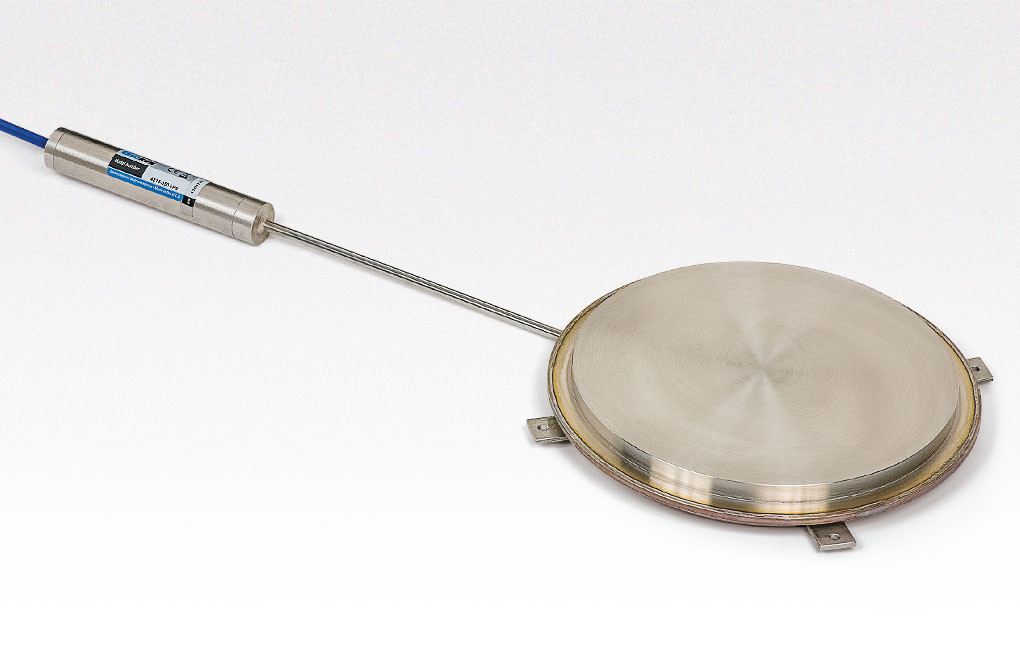

Model 4815 Granular Soil Pressure Cell.
  • Model 4815 Granular Soil Pressure Cell.
SKU:
Model 4815

The Model 4815 Pressure Cell* uses two thick plates welded together at a flexible hinge that helps provide a more uniform pressure distribution, which effectively reduces the severity of point loading when used in granular materials. As with the other models in the 4800 and 3500 Series, changing earth pressures squeeze the two plates together causing a corresponding increase of fluid pressure inside the cell. A vibrating wire pressure transducer converts this pressure into an electrical signal which is transmitted to the readout location.

Specifications

Standard Ranges¹
350, 700 kPa; 1, 2, 3, 5 MPa
Over Range
150% F.S. (maximum)
Resolution
0.025% F.S.
Accuracy²
±0.1% F.S.
Temperature Range¹
−20°C to +80°C
Height × Diameter¹
26 × 230 mm

¹Other ranges and sizes available on request.

²Transducer accuracy established under laboratory conditions.
Total system accuracy (pressure transducer + pressure cell) is subject to site-specific variables.

*Please Note: Models are also available (3500 Series) with semiconductor pressure transducers to enable measurement of dynamic pressures (please contact GEOKON for details).

Compatible Readouts and Dataloggers

Please Note: GEOKON maintains an ongoing policy of design review and reserves the right to amend products and specifications without notice. Various instruments are discontinued over time and replaced with new, updated models.
