Appendix A.Specifications

A.1Model 4450 Displacement Transducer


Range:

12 mm/0.50"

25 mm/1"

50 mm/2"

100 mm/4"

150 mm/6"

200 mm/8"

Resolution:¹

0.025% FSR

Linearity:

0.25% FSR

Thermal Zero Shift:²

< 0.05% FSR/°C

Stability:

< 0.2% / yr (under static conditions)

Overrange:

115% FSR

Temperature Range:

–40 to +80 °C (–40 +176 °F)

Frequency Range (standard model):

1400-3500 Hz

Frequency Range (small dia. model):

1700-3600 Hz

Coil Resistance:

180Ω, +10Ω

Cable Type:³

Two twisted pair (four conductor) 22 AWG
Foil shield, PVC jacket, nominal OD=6.3 mm (0.250")

Dimensions:

See Sections A.2 and A.3 below for dimensions

table 4: Model 4450 Displacement Transducer Specifications

Notes:

¹ Minimum, greater resolution possible depending on readout.

² Depends on application.

³ Polyurethane jacket cable available.

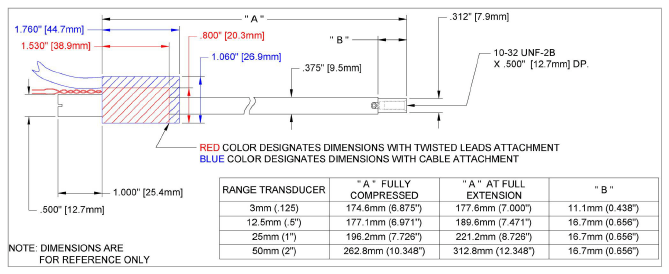

A.2Dimensions For Ranges of 50 mm (2) and Under



Figure 13: Dimensions: Ranges of 50 mm (2) and Under

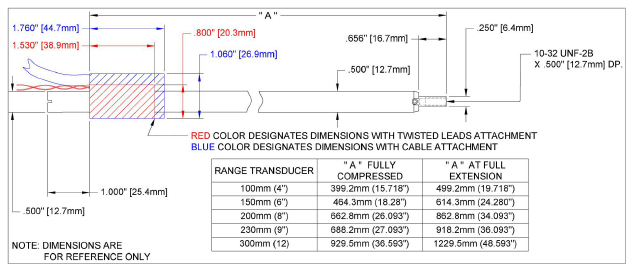

A.3Dimensions for Ranges of 100 mm (4) and Higher



Figure 14: Dimensions: Ranges of 100 mm (4) and Higher
