Part Number

Description

.

6600-1-10

Quick-Lock ABS inclinometer casing, 70 mm (2.75"), 3 m (10') length

6600-1B

Bottom Cap for Quick-Lock inclinometer casing. (Note: Requires ABS cement, local supply)

6600-1C

Replacing Coupler for Quick-Lock inclinometer casing.  (Note: Requires ABS cement, local supply)

6600-1T

Top Cap for Quick-Lock inclinometer casing

6600-1TS

Telescoping Section for Quick-Lock inclinometer casing, 3 m (10') length x 152 mm (6") range

6600-2

Quick-Lock coupling wire, 400 mm (16") length.  One required per coupling.

6600-2A

Casing Anchor Kit

6600-2RT

Reconnect Alignment Tool

6501-5

Inclinometer casing coupling waterproof tapes (enough for 24 couplings)

ADH-116   Putty Tape
SUP-802   Electrical Tape
SUP-806   Duct Tape

6501-6-4

Inclinometer casing protective housing, 0.91 m (3') × 100 mm (4") galvanized steel pipe with lockable cap. For use with 70 mm (2.75") casing.

6000-20

Pulley for 0.25" cables

6000-20A

Pulley for 0.3125" cables

07-062G

Galvanized aircraft cable, 1.59 mm (1/16”)

Note: ABS cement must be supplied locally.

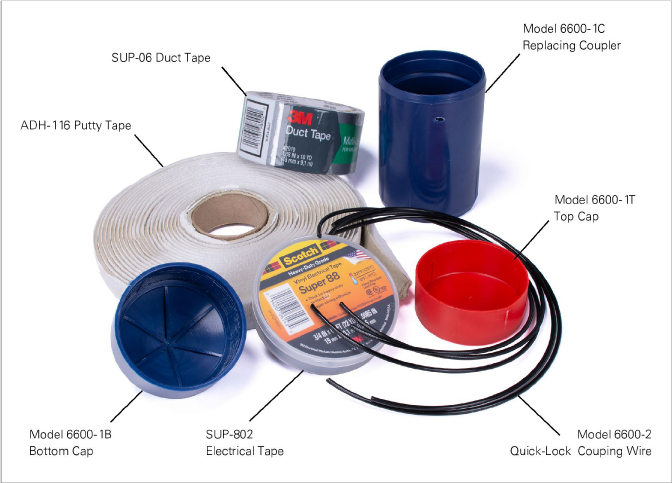

table 3: Model 6600 Available Accessories
