Piezometers

Corrosion Resistant Piezometers (VW) | Model 4500INCO · 4500TI

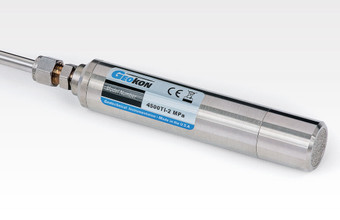

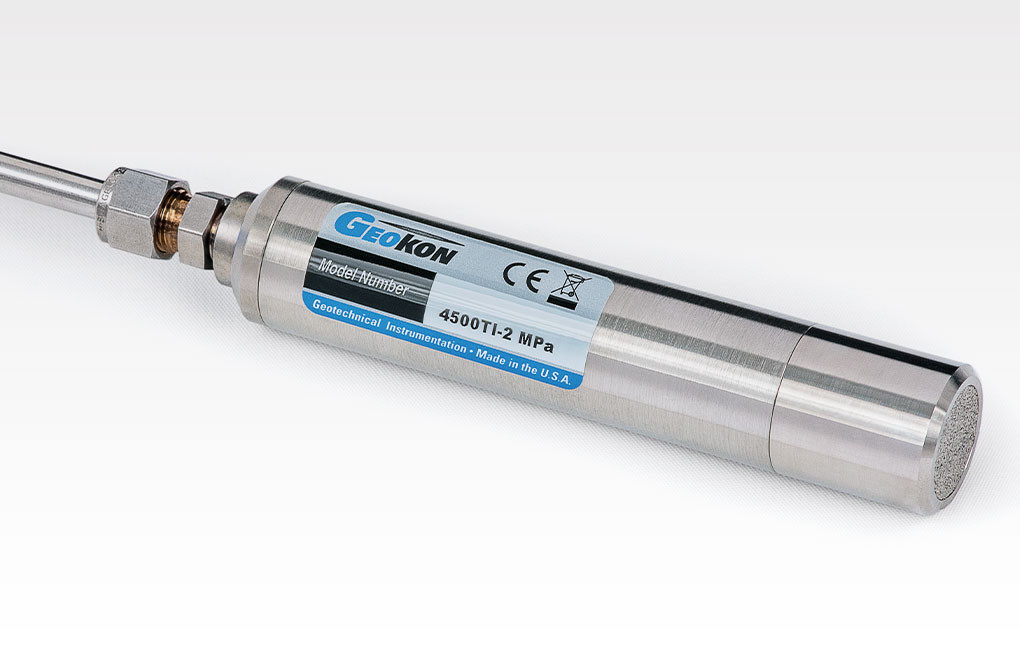

Model 4500TI Titanium Piezometer with cable in stainless steel tube.
  • Model 4500TI Titanium Piezometer with cable in stainless steel tube.
  • Model 4500TI Titanium Piezometer with PVC jacketed cable.
  • Model 4500INCO 170 kPa Piezometer with PVC jacketed cable.
  • Model 4500INCO 350 kPa Piezometer with PVC jacketed cable.
SKU:
Model 4500INCO · 4500TI

The Model 4500INCO and 4500TI Vibrating Wire Piezometers and Pressure Transducers are designed for use in chemically aggressive environments, such as mine tailings, leach pads, and marine applications, where standard vibrating wire piezometers may not be suitable for long-term monitoring. These corrosion-resistant models are manufactured from either INCONEL® (Model 4500INCO) or Titanium (Model 4500TI), and provide outstanding long-term stability and reliability, and low thermal sensitivity. Both models incorporate enhanced seals at the cable entry and filter connection*.

Specifications

Standard Ranges¹
4500INCO | 70, 170, 350, 700 kPa; 1, 2, 3, 5, 7.5, 10, 20 MPa
4500TI | 350, 700 kPa; 1, 2, 3, 5, 7.5, 10 MPa
Over Range
1.5 × rated pressure
Resolution
0.025% F.S. (minimum)
Accuracy²
±0.1% F.S.
Linearity
<0.5% F.S.
Temperature Range³
−20°C to +80°C
Length × Diameter
4500INCO | 133 × 19.1 mm, 133 × 25.4 mm, 194 × 25.4 mm
4500TI | 125 × 25.4 mm, 168 × 25.4 mm

¹Other ranges available on request.

²Accuracy established under laboratory conditions.

³Other ranges available on request. −40°C to +80°C available: please see data sheet for details.

*Please Note: All GEOKON vibrating wire piezometers include tripolar plasma surge arrestors to protect the sensor coils from possible lightning damage. Models are also available with semiconductor pressure transducers to enable measurement of dynamic pressures (please contact GEOKON for details).

Custom Piezometer Designs

GEOKON offers a variety of Custom Piezometer options and members of our experienced staff will help with the modifications necessary to meet your specific requirements. To learn more, please visit:


Please Note: GEOKON maintains an ongoing policy of design review and reserves the right to amend products and specifications without notice. Various instruments are discontinued over time and replaced with new, updated models.

INCONEL® is a trademark of the Special Metals Corporation group of companies.
