GeoNet Wireless LoRa® Data Acquisition System | 8910 Series

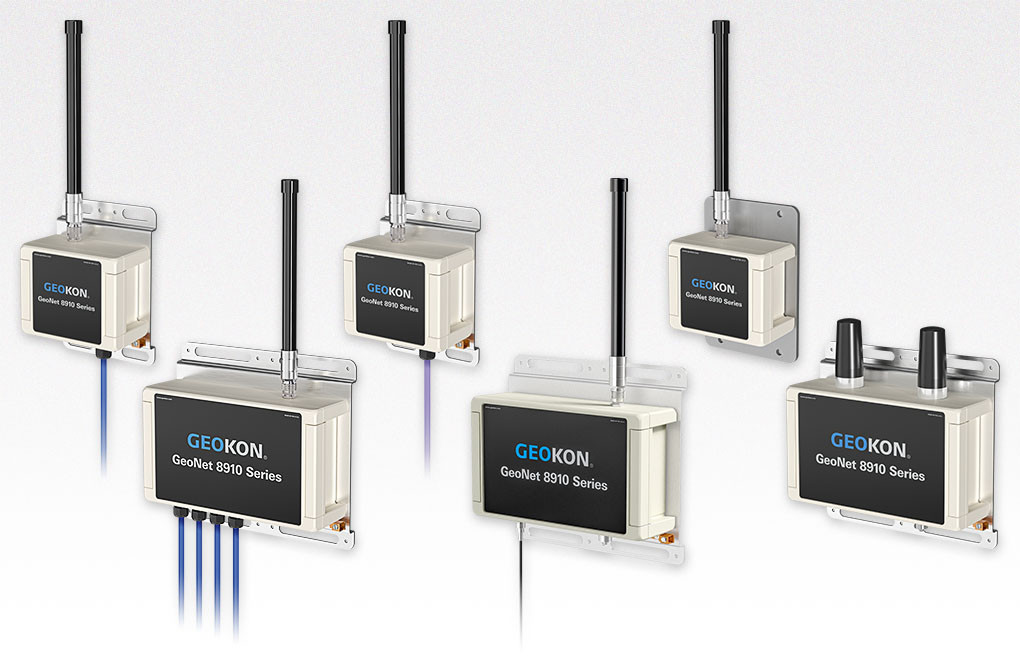

The Model 8910 Series includes the LoRa Single-Channel VW Data Logger, 4-Channel Analog Data Logger, Single-Channel Addressable Data Logger, Time Domain Reflectometry (TDR) Data Logger, Tilt Logger, and Gateway (left to right).
  • The Model 8910 Series includes the LoRa Single-Channel VW Data Logger, 4-Channel Analog Data Logger, Single-Channel Addressable Data Logger, Time Domain Reflectometry (TDR) Data Logger, Tilt Logger, and Gateway (left to right).
  • The Model 8910 Series LoRa Single-Channel VW Data Logger and 8-Channel VW Data Logger.
  • The Model 8910 Series LoRa Single-Channel Addressable Data Logger (with rechargeable battery) and Digital High Power Data Logger.
  • The Model 8910 Series Tilt Data Logger, 4-Channel Analog Data Logger, and Time Domain Reflectometry (TDR) Data Logger.
  • The Model 8910 Series Cellular Gateway, which controls the network, collects all sensor data from any data loggers deployed, and provides seamless and secure cloud integration.
SKU:
8910 Series

The GeoNet 8910 Series is a wireless data acquisition system and hosted data platform that utilizes LoRa radio technology. The integrated system comprises a gateway and subordinate wireless data loggers for efficient collection of sensor data from many points. The data loggers can also operate using the LoRaWAN® protocol for use with LoRaWAN third-party gateways. Secure access to sensor data is provided via the Internet and GEOKON OpenAPI.

The GeoNet 8910 Series is compatible with GEOKON (and most other manufacturers’) vibrating wire instruments and GEOKON addressable sensor strings (MEMS, VW, and thermistor). The Model 8910-TDR is specifically designed for use with Time Domain Reflectometry, for monitoring slope stability by detecting ground movement along potential slip surfaces (please see the Model TDR-CBL for more information). Wireless data acquisitions systems are especially useful in geographically complex locations where a wired infrastructure would be costly, or impossible, to install and difficult to maintain.

A Cellular Gateway¹ controls the network, collects all sensor data from any data loggers deployed, and provides seamless and secure cloud integration, which is achieved via GEOKON OpenAPI. The GEOKON OpenAPI is easy-to-use and allows users to activate data loggers, change settings, configure sensor channels, and view current data logger status. Industry leading data visualization software or the no-cost GEOKON Agent Software can be used with GEOKON OpenAPI for data viewing and reporting. GEOKON Desktop is for direct PC connection, and is used to configure, update, and interact with the GeoNet 8910 Series Data Loggers.

Multiple data logger types are available, including:

Vibrating Wire (VW) Data Loggers

Digital Data Loggers

  • Digital Addressable Data Loggers read all GEOKON addressable sensor strings (MEMS, VW, thermistor)
  • Digital High-Power data loggers can read up to 500 GEOKON MEMS sensors, or any other sensor that utilizes RS-485 Modbus® communication protocol

Analog Data Logger

  • Four-channel logger capable of reading data from analog sensors

TDR Data Logger

  • Specifically designed for use with the Model TDR-CBL Time Domain Reflectometry Cable

Tilt Data Logger

  • Combines the functionality of a biaxial tiltmeter with a GeoNet data logger

The capacity of GeoNet 8910 Series Multi-Channel and Addressable Data Loggers can be expanded using the Model 8960 Series Digital Vibrating Wire Interfaces, and Solar Panels of various wattages are available.

¹GeoNet Cellular Gateways are compatible with all major networks except Verizon.

Specifications

Range¹
Up to 20 km in rural open areas with line of sight
Up to 5 km in urban areas
Up to 4 km, 100% VOP (TDR)
Radio Technology
LoRa®/LoRaWAN®
Radio Frequency, ISM Band
868-928 MHz (user selectable masking by region)
Power Supply
2×D cell, lithium, 5-24V external (01C, 08C, ANA, ADR, TLT)
Internal sealed lead acid (SLA) battery pack, 4V,
10 Ah / 5-24V external (DHP, GTW)
12VDC 15W (TDR)
Operating Temperature
−40 °C to +85 °C (range varies by power source)
−40 °C to +65 °C (TLT)
−20 °C to +70 °C (TDR)
Tilt Range²
±90°
L × W × H
159 × 128 × 90 mm (01C, ADR, TLT)
299 × 173 × 90 mm (08C, ANA, DHP, TDR, GTW)

¹Outdoor, clear line-of-sight. Depends on operating frequency.

²Tilt Loggers only. Calibrated range: ±30°.

Custom Datalogger Designs

GEOKON offers a variety of Custom Datalogger options and members of our experienced staff will help with the modifications necessary to meet your specific requirements. To learn more, please visit:


Please Note: GEOKON maintains an ongoing policy of design review and reserves the right to amend products and specifications without notice. Various instruments are discontinued over time and replaced with new, updated models.
