Frequency to Analog Converter (VW) | Model 8020-59 · 8020-59 PLC

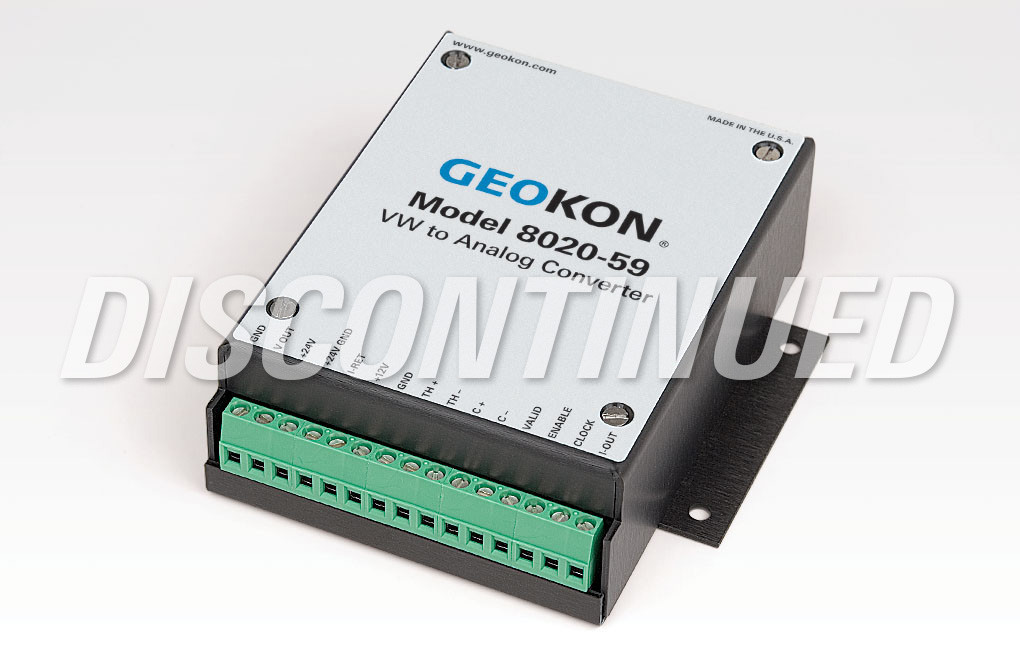

Model 8020-59 Vibrating Wire Frequency to Analog Converter.
  • Model 8020-59 Vibrating Wire Frequency to Analog Converter.
  • Model 8020-59 PLC Interface.
SKU:
Model 8020-59 · 8020-59 PLC

The Model 8020-59 Vibrating Wire (VW) to Analog Converter provides a simple way to connect GEOKON vibrating wire transducers to data acquisition systems, which are not capable of reading frequency signals nor able to generate the proper signals required to excite VW transducers. The converter can operate with single transducers, as a stand-alone device, or with multiple transducers in conjunction with the Model 8032 Multiplexer. The converter is powered using either a 12 V or 24 V supply.

The Model 8020-59 PLC provides the capability to control the 8020-59 VW to Analog Converter and/or the Model 8032 Multiplexer via relay closures (Ground Referenced) as provided by most Programmable Logic Controllers (PLC).

Specifications

8020-59
Power Requirements
12 V or 24 V
90 mA @ 12 V (operation), 10 µA (standby)
75 mA @ 24 V (operation), 16.5 mA (standby)
Operation Modes
Single Channel, 16 VW sensors with thermistors, or 32 VW sensors
Output (Analog)
0-5 V, 4-20 mA (non-isolated loop generator)
Resolution
16 bit
Accuracy
±0.1% F.S. (0-5 V), ±0.5% F.S. (4-20 mA)
Temperature Range
−20°C to +80°C
L × W × H
111 × 108 × 36 mm (with cover)

8020-59 PLC
Power Requirements

9 to 15 VDC (12 V nominal)
30 mA @ +12 V (operation), 20 µA @ +12 V (standby)
VALID Relay Closure Output
Type: PhotoMos Solid-State Relay
On Resistance: 50 Ω (maximum)
Load Current
100 mA (continuous), 300 mA (peak)
Load Voltage
400 V (maximum)
Isolation Voltage
1500 VAC (maximum)
Temperature Range
−20 °C to +80 °C
L × W × H
111 × 109 × 37 mm (with cover)

Please Note: GEOKON maintains an ongoing policy of design review and reserves the right to amend products and specifications without notice. Various instruments are discontinued over time and replaced with new, updated models.
