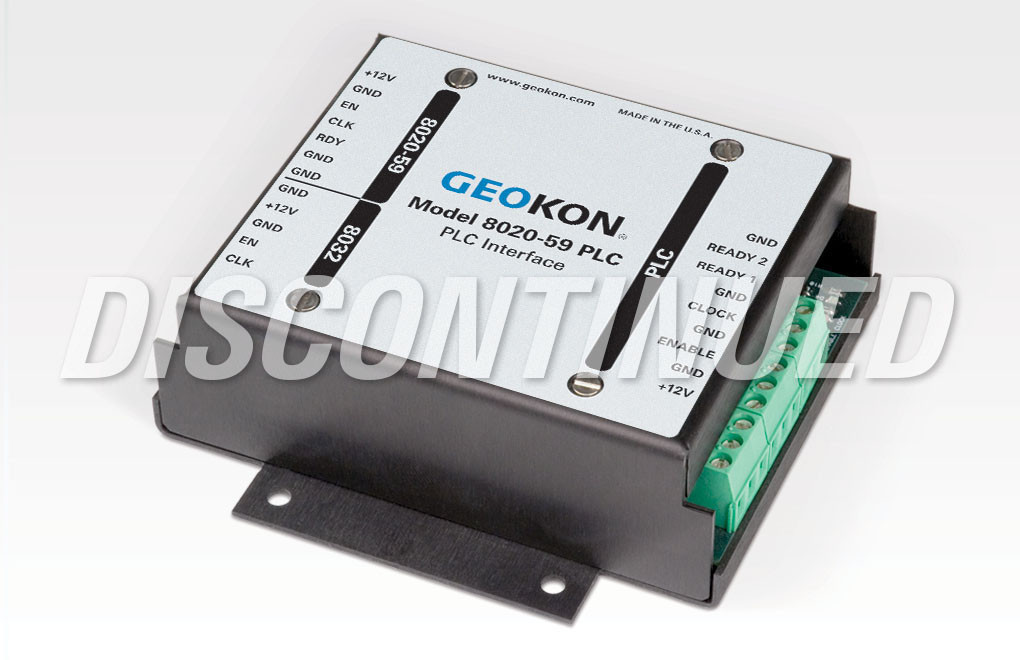

Model 8020-59 PLC | Discontinued

Model 8020-59 PLC Interface (this product has been discontinued).
  • Model 8020-59 PLC Interface (this product has been discontinued).

The Model 8020-59 PLC Programmable Logic Controller Interface provides the capability to control the 8020-59 VW to Analog Converter and/or the Model 8032 Multiplexer via relay closures (Ground Referenced) as provided by most Programmable Logic Controllers (PLC).

Specifications

Power Requirements
9 to 15 VDC (12 V nominal)
30 mA @ +12 V (operation), 20 µA @ +12 V (standby)
VALID Relay Closure Output
Type: PhotoMos Solid-State Relay
On Resistance: 50 Ω (maximum)
Load Current
100 mA (continuous), 300 mA (peak)
Load Voltage
400 V (maximum)
Isolation Voltage
1500 VAC (maximum)
Temperature Range
−20 °C to +80 °C
L × W × H
111 × 109 × 37 mm (with cover)

Please Note: GEOKON maintains an ongoing policy of design review and reserves the right to amend products and specifications without notice. Various instruments are discontinued over time and replaced with new, updated models.
