Strain Gauges

Model 4200HT-T High Temperature Embedment (VW) | Discontinued

Model 4200HT-T High Temperature Embedment Strain Gauge, designed for long-term use at temperatures up to 220 °C (this product has been discontinued).

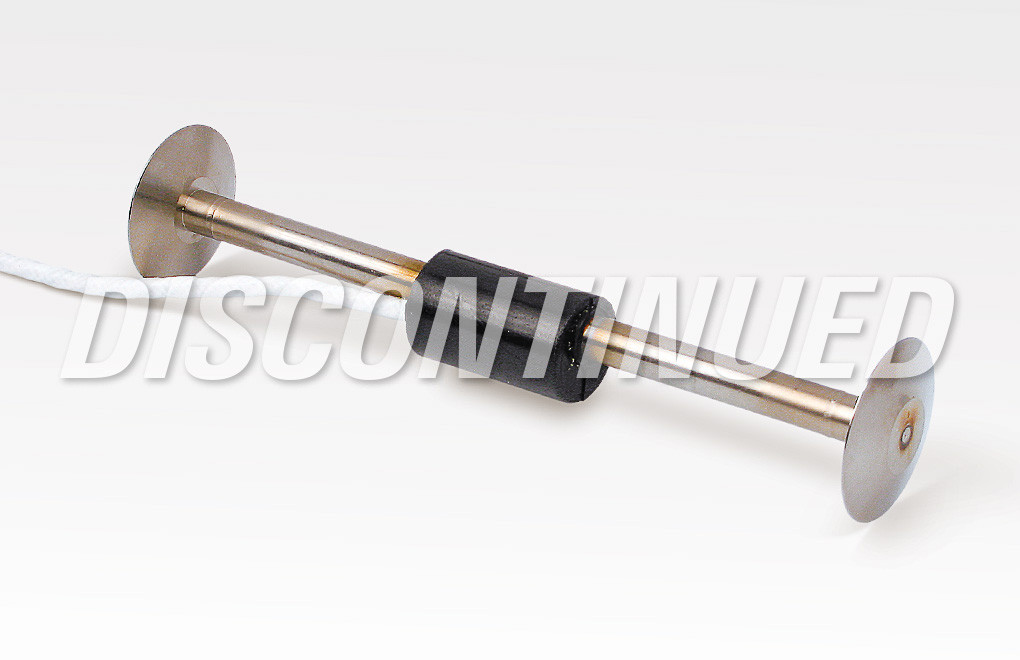

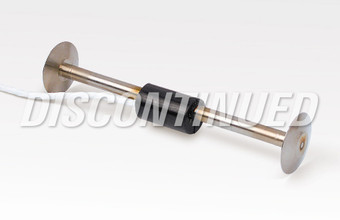

  • Model 4200HT-T High Temperature Embedment Strain Gauge, designed for long-term use at temperatures up to 220 °C (this product has been discontinued).
  • Model 4200HT-T High Temperature Embedment Strain Gauge dimensions (this product has been discontinued).

The Model 4200HT-T High Temperature Embedment Strain Gauge is similar to the standard Model 4200. However, the Model 4200HT-T is designed for long-term use at temperatures up to 220 °C. The Model 4200HT-T is particularly useful for measurements in autoclaved spun concrete piles.

The Model 4200HT-T has been discontinued. Please see the Model 4200HT for a suitable replacement.

Specifications

Standard Range
3000 µε
Resolution
1.0 µε
Accuracy¹
±0.5% F.S.
Nonlinearity
<0.5% F.S.
Temperature Range
−20 °C to +220 °C
Active Gauge Length
148 mm

¹Transducer accuracy established under laboratory conditions. ±0.5% F.S. with standard batch calibration.

Compatible Readouts and Dataloggers

Please Note: GEOKON maintains an ongoing policy of design review and reserves the right to amend products and specifications without notice. Various instruments are discontinued over time and replaced with new, updated models.
