StringLink™ Addressable Modbus® Converter | Model 8020-39

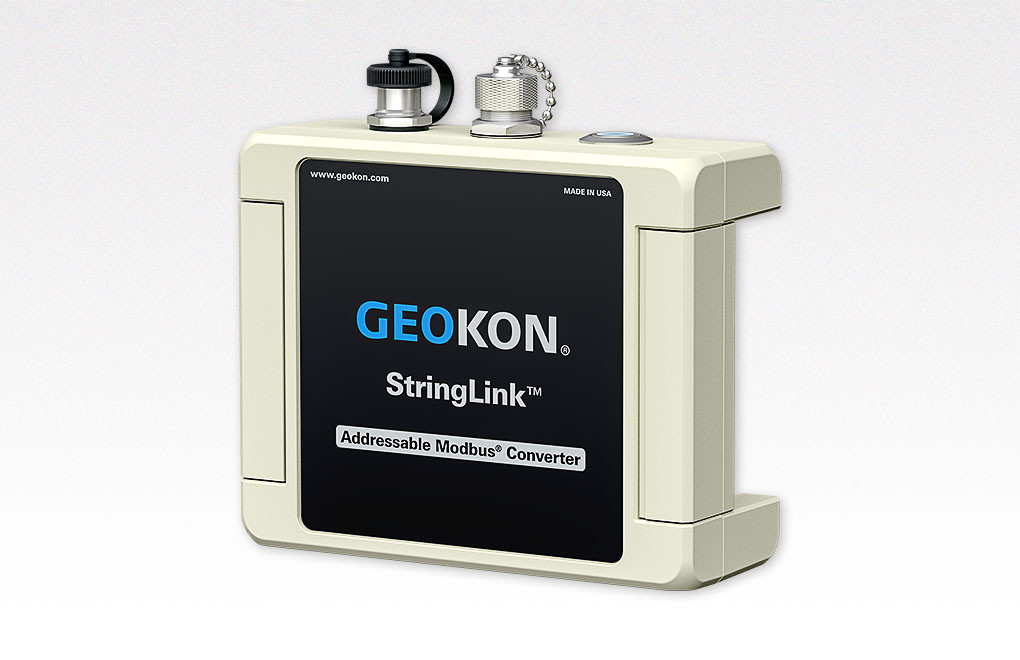

Model 8020-39 StringLink™ Addressable Modbus® Converter.
  • Model 8020-39 StringLink™ Addressable Modbus® Converter.
SKU:
Model 8020-39

The Model 8020-39 StringLink provides the means to interface GEOKON Addressable Sensor Strings with personal computers, readouts, and data loggers.

The StringLink acts as a bridge between USB-capable readers (USB 2.0 or greater) and GEOKON RS-485-enabled sensor strings. Placed in-line with the system, it provides bidirectional signal conversion between USB and RS-485.

Connection to the GEOKON addressable sensor string is made using a flying-lead or adapter cable.

Communication with GEOKON Addressable Sensor Strings is performed over a half-duplex RS-485 connection using industry standard Modbus® RTU protocol. The StringLink is designed for use with GEOKON Addressable String systems and operates at a fixed baud rate of 115200 bits per second.

Specifications

Power Supply Input
USB: 5 Volts DC 500 mA;
USB-PD: 12 V DC, 3 A
Power Supply Output
15 V DC, 1 A (max)
Sleep (Off) Current
200 µA
Operating Current
12 mA (max)
Interface
RS-485 (half-duplex, two-wire differential);
USB 2.0 to USB 3.x
Operating Temperature
−20 °C to +50 °C
Dimensions
163 × 151 × 62 mm

Custom Datalogger Designs

GEOKON offers a variety of Custom Datalogger options and members of our experienced staff will help with the modifications necessary to meet your specific requirements. To learn more, please visit:


Please Note: GEOKON maintains an ongoing policy of design review and reserves the right to amend products and specifications without notice. Various instruments are discontinued over time and replaced with new, updated models.

Modbus® is a registered trademark of SCHNEIDER ELECTRIC USA, INC. All other trademarks are the property of their respective owners.
