Tiltmeters · Pendulums

GeoNet Cellular Tilt Data Logger | Model 8921-TLT

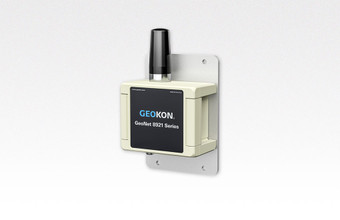

The self-contained Model 8921-TLT Cellular Tilt Data Logger.
  • The self-contained Model 8921-TLT Cellular Tilt Data Logger.
  • GEOKON Agent Software screenshot showing live data charts.
SKU:
Model 8921-TLT

The 8921 Cellular Tilt Data Logger is ideal for smaller, LTE Cat 1 compatible networks with a limited number of sensors, high-traffic areas (i.e. areas with radio interference), dense urban environments and areas with no line-of-sight between loggers.

GeoNet Cellular¹ Tilt Data Loggers can be added to sites with existing GeoNet 8800 Series and/or GeoNet 8900 Series Wireless Data Hosting Systems, allowing tilt readings to be taken in locations that are beyond the range of the existing network.

Seamless and secure cloud integration is achieved with GEOKON OpenAPI. The GEOKON OpenAPI portal is easy-to-use and allows users to activate loggers, change settings, configure sensor channels, and view current logger status. Industry leading data visualization software, or the no-cost GEOKON Agent Software, can be used with GEOKON OpenAPI for data viewing and reporting.

In addition, Solar Panels of various wattages are available for use with these Tilt Data Loggers.

For more information about the full complement of GeoNet Cellular Network Data Loggers, please see the GeoNet 8921 Series.

¹GeoNet Cellular Gateways are compatible with all major networks except Verizon.

Specifications

Tilt Range¹
±90°
Resolution²
0.00025° (0.004 mm/m)
Precision³
±0.0075° (±0.13 mm/m)
Data Memory
32 MB
Storage Capacity
500,000 readings
Power Supply
Rechargeable lithium battery / 5-24V external
Operating Temperature
−40 °C to +65 °C (−40 °F to +149 °F)
(range varies by power source)
L × W × H
Please refer to the product instruction manual.

¹Calibrated range: ±30°

²99% confidence interval (i.e. 99 out of 100 individual readings fall within this tolerance).

³99% confidence interval. Includes random walk (changes between consecutive readings that have no discernible cause) and seismic noise during testing.

Custom Tiltmeter and Pendulum Designs

GEOKON offers a variety of Custom Tiltmeter and Pendulum options and members of our experienced staff will help with the modifications necessary to meet your specific requirements. To learn more, please visit:


Please Note: GEOKON maintains an ongoing policy of design review and reserves the right to amend products and specifications without notice. Various instruments are discontinued over time and replaced with new, updated models.

Wi-Fi is a registered trademark of Wi-Fi Alliance®.All other trademarks are the property of their respective owners.
